DP - Compact Power Chokes, Low price - DPO, DPC, DPB, DPV, DPF.

DP Series Power inductors provide an excellent, low cost alternative to conventional chokes or inductors. Used in EMI filtering and energy storage, these compact, low radiation inductors are extremely effective in controlling AC output ripple of Switch Mode Power Supplies.

Features

  • Broad range of inductance values and current ratings
  • Low cost, no radiation design
  • Compact size, for high density packaging
  • Hot solder, pre-tinned leads for easy PC board mounting
  • Operating frequency to 100 kHz
  • Competitive pricing due to high volume production
  • Manufactured in ISO-9000 approved facility
   DP - Compact Power Chokes, Low price

Applications

  • Switching Power Supplies
  • EMI/RFI filtering
  • Output Chokes
IDC: 0.5A IDC: 1A IDC: 2A IDC: 3A IDC: 5A IDC: 7.5A IDC: 10A IDC: 15

Ordering Key
Mechanical Outlines & Dimensions


General Specifications

Part Number IDC (Amps) L (µH) Typ. @
Rated Current		 Lo (µH) ±15%
No Load		 DCR (Ohms)
Max.		 Min. Energy
Storage (µJ)*		 Wire Ø
(mm)		 Coil Size mm
O.D. x Ht.		 Mounting Style
Availability / Size
C B V F
 DP_-0.5-47
 DP_-0.5-68
 DP_-0.5-100
 DP_-0.5-150		 0.5 47
68
100
150		 50
73
109
167		 0.095
0.115
0.140
0.173		 5.9
8.5
12.5
18.8		 0.400
0.400
0.400
0.400		 14 x 8
14 x 8
14 x 8
15 x 8		 2
2
2
2		 3
3
3
3		 2
2
2
2		 2
2
2
2
 DP_-0.5-220
 DP_-0.5-330
 DP_-0.5-470
 DP_-0.5-680
 DP_-0.5-1000		 220
330
470
680
1,000		 258
393
557
849
1,358		 0.215
0.265
0.322
0.398
0.503		 27.5
41.3
58.8
85
125		 0.400
0.400
0.400
0.400
0.400		 15 x 9
15 x 9
20 x 9
20 x 10
21 x 11		 2
2
3
3
3		 3
3
3
3
5		 2
2
3
3
4		 2
2
3
3
3
 DP_-0.5-1500
 DP_-0.5-2200
 DP_-0.5-3300
 DP_-0.5-4700		 1,500
2,200
3,300
4,700		 1,863
3,131
5,024
6,287		 0.714
0.926
1.173
1.421		 188
275
413
588		 0.400
0.400
0.400
0.400		 25 x 12
25 x 12
26 x 13
32 x 15		 5
5
5
5		 5
5
5
8		 4
4
5
5		 4
4
6
6



Top of page


Part Number IDC (Amps) L (µH) Typ. @
Rated Current		 Lo (µH) ±15%
No Load		 DCR (Ohms)
Max.		 Min. Energy
Storage (µJ)*		 Wire Ø
(mm)		 Coil Size mm
O.D. x Ht.		 Mounting Style
Availability / Size
C B V F
 DP_-1.0-22
 DP_-1.0-33
 DP_-1.0-47
 DP_-1.0-68
 DP_-1.0-100		 1.0 22
33
47
68
100		 23
37
53
80
127		 0.041
0.052
0.063
0.077
0.097		 11.0
16.5
23.5
34
50		 0.500
0.500
0.500
0.500
0.500		 14 x 8
14 x 8
14 x 8
14 x 8
15 x 8		 2
2
2
2
2		 3
3
3
3
3		 2
2
2
2
2		 2
2
2
2
2
 DP_-1.0-150
 DP_-1.0-220
 DP_-1.0-330
 DP_-1.0-470		 150
220
330
470		 207
345
491
601		 0.123
0.196
0.193
0.180		 75
110
165
235		 0.500
0.450
0.500
0.600		 15 x 9
15 x 9
20 x 9
27 x 12		 2
2
3
5		 3
3
3
5		 3
3
3
5		 2
2
3
6
 DP_-1.0-680
 DP_-1.0-1000
 DP_-1.0-1500
 DP_-1.0-2200
 DP_-1.0-3300		 680
1,000
1,500
2,200
3,300		 891
1,619
2,149
3,609
4,731		 0.220
0.426
0.532
0.689
0.609		 340
500
750
1,100
1,650		 0.600
0.500
0.500
0.500
0.600		 27 x 13
26 x 13
30 x 14
31 x 15
43 x 15		 5
4
5
5
-		 5
5
5
5
8		 5
5
5
6
-		 6
6
6
6
-



Top of page


Part Number IDC (Amps) L (µH) Typ. @
Rated Current		 Lo (µH) ±15%
No Load		 DCR (Ohms)
Max.		 Min. Energy
Storage (µJ)*		 Wire Ø
(mm)		 Coil Size mm
O.D. x Ht.		 Mounting Style
Availability / Size
C B V F
 DP_-2.0-22
 DP_-2.0-33
 DP_-2.0-47
 DP_-2.0-68		 2.0 22
33
47
68		 27
45
73
109		 0,070
0,089
0,090
0,089		 44
66
94
136		 0,400
0,400
0,450
0,500		 14 x 8
14 x 8
15 x 8
15 x 8		 2
2
2
2		 3
3
3
3		 2
2
2
2		 2
2
2
2
 DP_-2.0-100
 DP_-2.0-150
 DP_-2.0-220
 DP_-2.0-330
 DP_-2.0-470		 100
150
220
330
470		 157
207
328
575
720		 0,109
0,106
0,153
0,202
0,214		 200
300
440
660
940		 0,500
0,600
0,560
0,560
0,600		 15 x 9
25 x 12
25 x 11
26 x 12
30 x 14		 3
4
4
4
5		 3
5
5
5
5		 3
4
4
4
5		 3
4
4
4
6
 DP_-2.0-680
 DP_-2.0-1000
 DP_-2.0-1500
 DP_-2.0-2200		 680
1.000
1.500
2.200		 1.251
1.429
2.488
3.218		 0,282
0,335
0,441
0,405		 1.360
2.000
3.000
4.400		 0,600
0,600
0,600
0,710		 30 x 14
42 x 14
42 x 15
51 x 22		 5
-
-
-		 5
5
8
10		 5
9
9
-		 6
-
-
-



Top of page


Part Number IDC (Amps) L (µH) Typ. @
Rated Current		 Lo (µH) ±15%
No Load		 DCR (Ohms)
Max.		 Min. Energy
Storage (µJ)*		 Wire Ø
(mm)		 Coil Size mm
O.D. x Ht.		 Mounting Style
Availability / Size
C B V F
 DP_-3.0-15
 DP_-3.0-22
 DP_-3.0-33
 DP_-3.0-47
 DP_-3.0-68		 3.0 15
22
33
47
68		 21
34
49
75
92		 0.039
0.038
0.038
0.048
0.060		 68
99
149
212
306		 0.500
0.500
0.630
0.630
0.710		 14 x 8
14 x 8
19 x 8
20 x 8
25 x 12		 2
2
3
3
4		 3
3
3
3
5		 2
2
3
3
4		 2
2
3
3
4
 DP_-3.0-100
 DP_-3.0-150
 DP_-3.0-220
 DP_-3.0-330		 100
150
220
330		 157
207
346
625		 0.080
0.107
0.134
0.142		 458
675
990
1,485		 0.710
0.710
0.630
0.710		 25 x 12
25 x 12
29 x 13
30 x 14		 4
4
5
5		 5
5
5
5		 4
4
5
5		 4
4
6
6
 DP_-3.0-470
 DP_-3.0-680
 DP_-3.0-1000
 DP_-3.0-1500
 DP_-3.0-2200		 470
680
1,000
1,500
2,200		 727
1,124
1,493
2,324
4,090		 0.187
0.302
0.304
0.384
0.509		 2,115
3,060
4,500
6,750
9,900		 0.670
0.630
0.670
0.670
0.670		 42 x 14
42 x 16
49 x 20
53 x 24
54 x 26		 -
-
-
-
-		 5
8
10
11
11		 9
-
-
-
-		 -
-
-
-
-



Top of page


Part Number IDC (Amps) L (µH) Typ. @
Rated Current		 Lo (µH) ±15%
No Load		 DCR (Ohms)
Max.		 Min. Energy
Storage (µJ)*		 Wire Ø
(mm)		 Coil Size mm
O.D. x Ht.		 Mounting Style
Availability / Size
C B V F
 DP_-5.0-15
 DP_-5.0-22
 DP_-5.0-33
 DP_-5.0-47		 5.0 15
22
33
47		 23
28
48
82		 0.029
0.039
0.036
0.043		 188
275
413
588		 0.600
0.600
0.710
0.750		 20 x 8
25 x 12
25 x 12
25 x 12		 3
4
4
4		 3
5
5
5		 3
4
4
4		 3
4
4
4
 DP_-5.0-68
 DP_-5.0-100
 DP_-5.0-150
 DP_-5.0-220		 68
100
150
220		 137
172
221
381		 0.055
0.059
0.094
0.097		 850
1,250
1,875
2,750		 0.750
0.800
0.710
0.800		 26 x 12
30 x 13
41 x 13
41 x 13		 4
5
-
-		 5
5
5
5		 4
5
9
9		 4
5
-
-
 DP_-5.0-330
 DP_-5.0-470
 DP_-5.0-680
 DP_-5.0-1000		 330
470
680
1,000		 475
852
1,186
2,093 		 0.156
0.187
0.196
0.206		 4,125
5,875
8,500
12,500		 0.710
0.750
0.800
0.900		 49 x 20
49 x 20
53 x 25
55 x 26		 -
-
-
-		 10
10
11
11		 -
-
-
-		 -
-
-
-



Top of page


Part Number IDC (Amps) L (µH) Typ. @
Rated Current		 Lo (µH) ±15%
No Load		 DCR (Ohms)
Max.		 Min. Energy
Storage (µJ)*		 Wire Ø
(mm)		 Coil Size mm
O.D. x Ht.		 Mounting Style
Availability / Size
C B V F
 DP_-7.5-15
 DP_-7.5-22
 DP_-7.5-33
 DP_-7.5-47
 DP_-7.5-68		 7.5 15
22
33
47
68		 18
30
49
84
105		 0.022
0.025
0.025
0.026
0.040		 422
619
928
1,322
1,913		 0.750
0.800
0.900
0.950
0.900		 30 x 14
30 x 14
30 x 14
31 x 14
42 x 14		 5
5
5
5
-		 5
5
5
5
5		 5
5
5
5
9		 6
6
6
6
-
 DP_-7.5-100
 DP_-7.5-150
 DP_-7.5-220
 DP_-7.5-330
 DP_-7.5-470		 100
150
220
330
470		 160
219
373
605
1,054		 0.045
0.074
0.070
0.090
0.085		 2,813
4,219
6,188
9,281
13,219		 1.000
0.850
1.000
1.000
1.180		 43 x 17
50 x 21
51 x 22
54 x 25
55 x 28		 -
-
-
-
-		 8
10
10
11
11		 -
-
-
-
-		 -
-
-
-
-



Top of page


Part Number IDC (Amps) L (µH) Typ. @
Rated Current		 Lo (µH) ±15%
No Load		 DCR (Ohms)
Max.		 Min. Energy
Storage (µJ)*		 Wire Ø
(mm)		 Coil Size mm
O.D. x Ht.		 Mounting Style
Availability / Size
C B V F
 DP_-10-15
 DP_-10-22
 DP_-10-33
 DP_-10-47		 10 15
22
33
47		 21
28
46
75		 0.013
0.021
0.022
0.028		 750
1,100
1,650
2,350		 0.950
0.900
1.000
1.000		 30 x 14
41 x 14
42 x 14
42 x 14		 5
-
-
-		 5
5
5
5		 5
9
9
9		 6
-
-
-
 DP_-10-68
 DP_-10-100
 DP_-10-150
 DP_-10-220		 68
100
150
220		 89
152
248
427		 0.042
0.044
0.041
0.054		 3,400
5,000
7,500
11,000		 0.900
1.000
1.180
1.180		 50 x 21
50 x 21
55 x 26
55 x 26		 -
-
-
-		 10
10
11
11		 -
-
-
-		 -
-
-
-



Top of page


Part Number IDC (Amps) L (µH) Typ. @
Rated Current		 Lo (µH) ±15%
No Load		 DCR (Ohms)
Max.		 Min. Energy
Storage (µJ)*		 Wire Ø
(mm)		 Coil Size mm
O.D. x Ht.		 Mounting Style
Availability / Size
C B V F
 DP_-15-6.8
 DP_-15-10
 DP_-15-15
 DP_-15-22		 15 6.8
10
15
22		 8
14
22
36		 0.009
0.012
0.011
0.014		 765
1,125
1,688
2,475		 1.000
1.000
1.180
1.250		 41 x 14
41 x 14
41 x 14
44 x 18		 -
-
-
-		 5
5
5
8		 9
9
9
-		 -
-
-
-
 DP_-15-33
 DP_-15-47
 DP_-15-68
 DP_-15-100		 33
47
68
100		 49
75
123
207		 0.018
0.016
0.018
0.023		 3,713
5,288
7,650
11,250		 1.180
1.400
1.500
1.500		 50 x 21
51 x 22
52 x 23
56 x 27		 -
-
-
-		 10
11
11
11		 -
-
-
-		 -
-
-
-


Notes:

  1. The µJoule rating (0.5 x LI2) is the ability of the inductor to store energy
  2. Inductance is measure at 0.10Vrms @ 10kHz without DC Current and 0.25Vrms @ 10kHz with DC Current.



Top of page

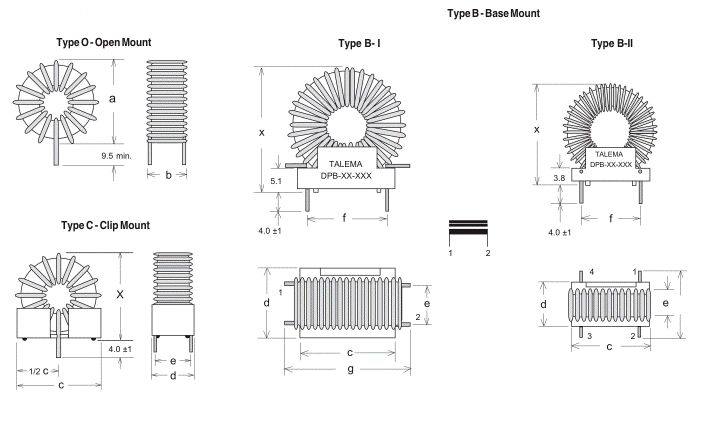

Mechanical Outlines & Dimensions

Mechanical Outlines & Dimensions

Mounting Style Size Code Dimensions (mm)
c d e f g h i x Pin Ø
"C"
Clip
Mount		 2
3		 16.5
21.0		 11.4
11.4		 7.6
7.6		 -
-		 -
-		 -
-		 -
-		 Coil O.D. +2.8
Coil O.D. +2.8		 See
Data Page
4
5		 24.1
31.8		 15.2
17.8		 11.4
12.7		 -
-		 -
-		 -
-		 -
-		 Coil O.D. +2.8
Coil O.D. +3.3
"V"
Vertical
Mount		 2
3
4		 17.8
23.0
27.0		 12.8
15.5
18.0		 20.0
25.0
30.0		 10.0
12.5
15.0		 5.0
10.0
12.5		 15.0
20.0
22.5		 5.0
5.0
5.0		 -
-
-		 0.60 x 0.88
5
6
9		 32.0
32.0
43.0		 20.5
23.0
28.0		 35.0
35.0
47.5		 17.5
20.0
25.0		 12.5
12.5
25.0		 27.5
27.5
40.0		 7.5
7.5
7.5		 -
-
-		 0.75 x 1.10
"F"
Flat
Mount		 2
3		 17.5
22.5		 17.0
22.0		 12.5
15.0		 10.0
12.5		 15.0
20.0		 -
-		 -
-		 -
-		 0.60 x 0.88
4
6
9		 27.5
32.5
42.5		 27.0
32.0
42.0		 17.5
20.0
28.5		 15.0
20.0
25.0		 25.0
30.0
35.0		 -
-
-		 -
-
-		 -
-
-
Base
Mount
"B-I"		 5
8		 25.4
27.9		 15.2
20.3		 10.2
15.2		 20.3
22.9		 34.3
36.8		 -
-		 -
-		 Coil O.D. +3.5 1.27
10
11		 35.6
43.2		 22.9
27.9		 17.8
22.9		 30.5
38.1		 44.5
52.1		 -
-		 -
-
"B-II" 3 19.1 10.8 6.4 15.2 15.9 - - Coil O.D. +3.8 1.02



Top of page
