TE Series - Mini Dual Port

Preliminary Data Sheet



Features

  • Low profile (5.8mm) and lightweight(3.5 g) the 10/100Base-T Dual transformer modules facilitate pick and place compatibility and speed of placement
  • Dual port modules meet requirements of IEEE 802.3u and ANSI X3.263
  • Consistent and reliable co-planarity
  • Manufactured in ISO-9001 approved facility


Electrical Specifications @ 25°C

Inductance: 350µH minimum @ 100kHz, 100mV, 8mA
Leakage Inductance: 0.4µH @ 1MHz
CW/W: 20pF Typical
Minimum Isolation Voltage: 1,500 Vrms


Operating Temperature: 0° to +70°C
Storage Temperature: -25°C to +105°C
Standard packing: Tape and reel


Quality and consistency is guaranteed through 100% testing of the specified parameters for primary inductance, leakage inductance, turns ratio, DC resistance and Interwinding capacitance. This ensures that the return loss and pulse wave shape requirements can be fully maintained. Additionally, all parts are tested for 1,500V minimum isolation.

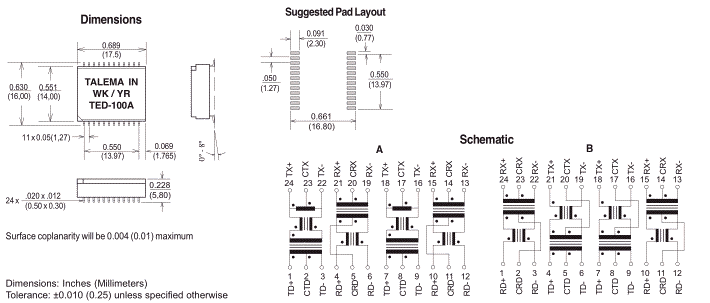

TED Series - SMD Dual Port 10/100Base-T Isolation Transformer Modules

Part
Number		 Turns Ratio
±2%		 Insertion
Loss
(dB Typ.)		 Return Loss
(dB Min.)		 Crosstalk
(db Min.)		 Common to Common
Rejection Ratio
0.1-60MHz
(dB Typ.)		 Differential to
Common Mode
Rejection (dB Min.)		 Schematic
Tx Rx 1-100MHz 1-30MHz 40MHz 50MHz 60-80MHz 1MHz 30MHz 60MHz 100MHz Transmit Receive 1-60MHz 60-200MHz
 TED-100A 1ct:1ct 1ct:1ct -1.2 -18 -16 -14 -12 -50 -42 -40 -35 -40 -30 -39 -33 A
 TED-104A 2ct:1ct 1ct:1ct -1.2 -18 -16 -14 -12 -50 -42 -40 -35 -40 -30 -39 -33 A
 TED-100B 1ct:1ct 1ct:1ct -1.1 -18 -16 -14 -12 -35 -35 -35 -35 -35 -35     B
