U Port SMD 1xInterface 0,5KV


Features

  • matched to Infineon´s PEB2095 & PEB20950 and AMD&squot;s AM2095 & AM20950 chipsets
  • excellent and consistent balance between windings
  • compact sizes in through-hole and surface mount packages
  • complies fully with all international standards for U-Interface
  • manufactured in ISO-9001 approved facility
  • operating temperature: -40° to +85°C
   U Port SMD 1xInterface 0,5KV Transformers

Electrical Specifications @ 25°C   Turns Ratio: Bold = IC Side Windings


UPO SMD Interface Transformers

Complies with Basic Insulation Level EN60950, UL 1950 and UL 1459

Part Number Turns Ratio
±2%		 LP
(mH Min.)		 LL
(µH)		 ^IDC
(mA)		 CC
(pF Max.)		 DCR (Ohms) VP
(Vrms)
Primary Secondary
UWJ-180 1:1:4 1.7 10 140 100 1.5 5.2 500


Test Conditions:
Inductance:   Line side windings in series - measurement @ 10kHz, 100mVrms
Leakage Inductance:   Line side windings in series, IC side winding short circuited - measurement @ 100kHz, 100mVrms
Coupling Capacitance:   IC side winding to Line side windings in series @ 10kHz, 100mVrms
Test Voltage:   Line side windings in series to IC side winding

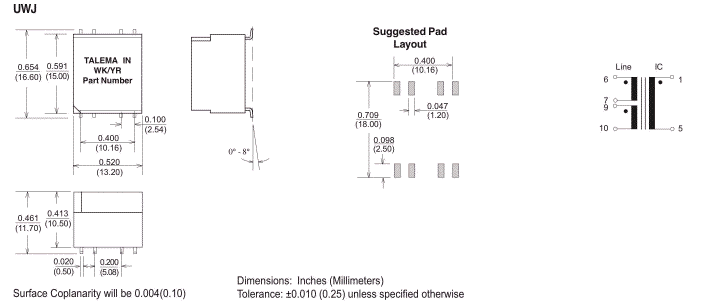

Dimensions & Schematic

UWJ - Dimensions & Schematic - Pins
