LTM-110A - Line Interface 56kbps Modem Transformer


Features

  • designed for V.90 applications (56kbps)
  • very low distortion
  • wide frequency range with flat response
  • meets IEC 60950 Supplementary Insulation levels, 1,500V min.
  • excellent quality at competitive price due to high volume production
  • manufactured in ISO-9001:2000 approved facility
   LTM-110A - Line Interface Modem Transformer



Mechanical Dimensions & Pinout
Performance Date

Electrical Specifications @ 25°C - Operating Temperature -40°to 85°C

Parameter Conditions Typical Limit Units
 Frequency Response 200 - 4,000Hz ±0.5 - dB
 Insertion Loss 2,000Hz, RL600 Ohms 1.0 1.5 max dB
 Return Loss 200 - 4,000Hz 22 18 min. dB
 THD 150Hz, -3dBm -70 - dB
 THD 200Hz, -10dBm -85 - dB
 DC Resistance per winding 70 ±10% Ohms
 Inductance 1,000Hz, 1V 6.0 - H
 Leakage Inductance 1,000Hz, 1V 17 - mH
 Turns Ratio
1:1 ±2% -

#top#

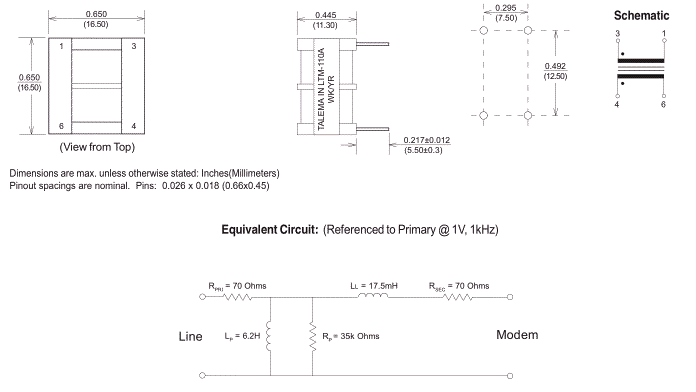

Mechanical Dimensions, Pinout & Schematic

Dimensions & Schematic - Pins

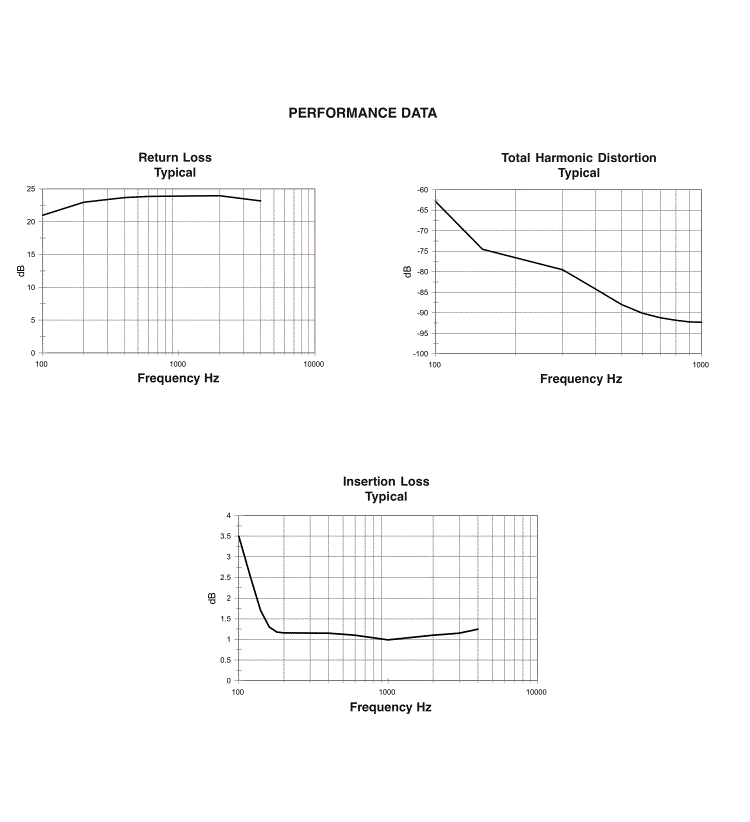

Perfomance Data
