AEP900 -Legerity(AMD) Chipsets


Features

  • complies with ANSI and ETSI requirements
  • matched to Legerity´s AMDSL 134 chipsets
  • very low THD
  • 1,500V minimum isolation
  • all materials approved to UL94V-0
  • excellent quality at competitive price due to high volume production
  • manufactured in ISO-9001 approved facility
   AEP900 - Legerity (AMD) Chipsets


Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number		 Package IC Driver Turns
Ratio
±2%
Line : IC		 LP
(µH)
±10%		 LL
(µH)
Max.		 CWW
(pF)
Max.		 DCR
(Ohms)
Max.
Line / IC		 THD (Linearity)
Typical		 Longitudinal Balance
Min.		 Insertion
Loss
Max.		 Frequency Response
Max.		 Isolation Voltage (Vrms)
 AEP900-T TH  AMDSL 134 CO 2 : 1 410 8 60 0,90 / 0,50 -80dB
100kHz		 -40dB
25kHz - 1MHz		 0,5dB
100kHz		 1,0dB
30kHz-1,1MHz		 1.500
 AEP900-S SMD
 AEP910-T TH  AMDSL 134 CPE 1 : 1 410 8 60 0,90 / 1,00
 AEP910-S SMD

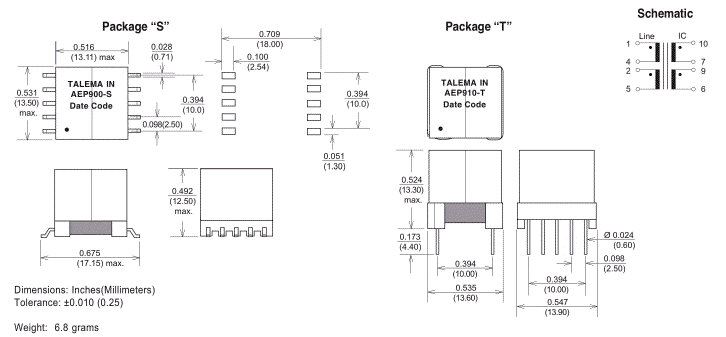

Dimensions & Schematic - Pins
