AEP600 -Lucent Chipsets

Features

complies with ANSI and ETSI requirements
matched to Lucent´s Wildwire chipsets
very low THD
1,500V minimum isolation
all materials approved to UL94V-0
excellent quality at competitive price due to high volume production
manufactured in ISO-9001 approved facility

AEP600 - Lucent Chipsets

Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number

Package

IC Driver

Turns
Ratio
±2%
Line : IC

L_P
±6%

L_L
(µH)
Max.

C_WW
(pF)
Max.

DCR
(Ohms)
Max.
Line / IC

THD
(Linearity)
Typical

Longitudinal
Balance
Min.

Insertion
Loss
Max.

Frequency
Response
Max.

Isolation
Voltage
(Vrms)

AEP600-T

TH

Wildwire CPE

1 : 1

1,23mH

10

40

1,40 / 1,60

-80dB
100kHz

-50dB
30kHz-1,1MHz

0,5dB
300kHz

0,5dB
30kHz-1,1MHz

1.500

AEP610-T

TH

Wildwire CO

1 : 1

490µH

10

40

1,35 / 1,50

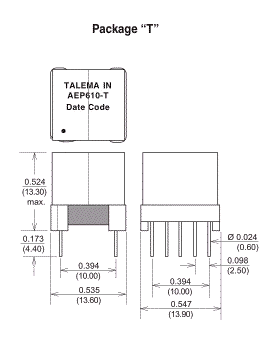

Dimensions

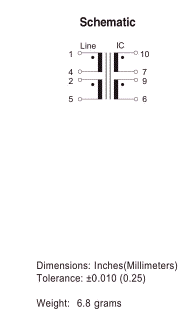

Schematic - Pins
