AEP200 -Alcatel Chipsets

Features

complies with ANSI and ETSI requirements
matched to Alcatel´s MTK-20130, MTK-20131, MTK-20140, MTK-20141, MTK-20150, MTK-20152 & MTK-20450 chipsets
very low THD
1,500V minimum isolation
all materials approved to UL94V-0
excellent quality at competitive price due to high volume production
manufactured in ISO-9001 approved facility

AEP200 - Alcatel Chipsets

APT Electrical Specifications & Layout

Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number

Package

IC Driver

Turns
Ratio
±2%
Line : IC

L_P
(µH)
±10%

L_L
(µH)
Max.

C_WW
(pF)
Max.

DCR
(Ohms)
Max.
Line / IC

THD (Linearity) Typical

Longitudinal
Balance
Min.

Insertion Loss
Max.

Freq.
Response
Max.

Isolation
Voltage
(Vrms)

AEP210-T

TH

MTK20130/140/150 CO
MTK20450 CO/CPE

2 : 1

410

8

50

0,90 / 0,50

-72dB
20kHz

-40dB
30kHz-1,1MHz

1,0dB
100kHz,
1,1MHz

1,5dB
30kHz-1,1MHz

1.500

AEP210-S

SMD

AEP220-T

TH

MTK20130/140/
141/150/152 CPE

1 : 1

480

5

50

1,25 / 1,35

-72dB
10kHz

AEP220-S

SMD

AEP230-T

TH

MTK20130/140/150 CO
MTK20450 CO/CPE

2 : 1

410

8

50

0,90 / 0,50

-72dB
20kHz

AEP230-S

SMD

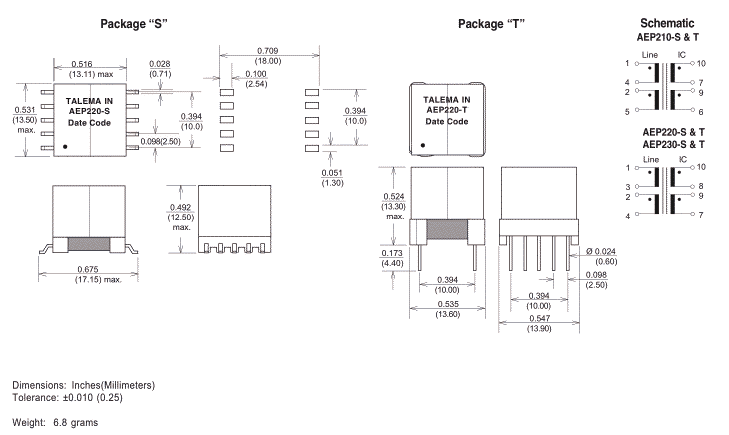

Dimensions

Dimensions & Schematic - Pins

Top of page

Features

complies with ANSI and ETSI requirements
matched to Alcatel&squot;s MTK-20131 chipset
very low THD
2000V minimum isolation
all materials approved to UL94V-0
excellent quality at competitive price due to high volume production
manufactured in ISO-9001 approved facility

APT200-T transformer

Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part Number	IC Driver	Turns Ratio ±2% Line : IC	L_P (µH) ± 5%	LL (µH) Max.	DCR (Ohms Max.) Line / IC	THD (Linearity) Typical	Frequency Response Max.	Isolation Voltage (Vrms)
APT200-T	MTK-20131 CPE	1 : 1	440	15	0.30 / 1.20	-70dB 40kHz	3dB 40kHz - 2MHz	1500

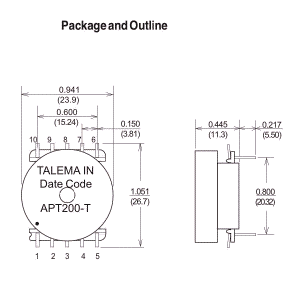

Package and Outline

Schematic - Pins
